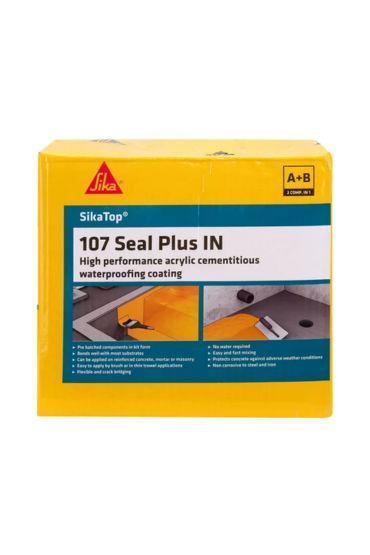

SikaTop®-107 Seal Plus IN
High performance acrylic polymer modified cementitious waterproofing coating
SikaTop®-107 Seal Plus IN is a flexible, two part, high performance acrylic polymer modified cementitious liquid applied waterproofing coating system. It comprises of a liquid polymer and a cement based mix incorporating special admixtures. It is applied to concrete and mortar to prevent water infiltration with flexibility. It is available in a user friendly pre-packed kit form.
- Easy to apply by brush, spray or flat trowel
- No additional water is required to make the slurry
- Pre-batched components with consistent quality
Usage
Waterproofing applications for various structures such as:
- Raw water concrete tanks, reservoirs, waste water tanks
- Terraces, balconies, sunshades, etc.
- Flat and small roofs
- Basement and retaining walls
- Swimming pools, fountains, water bodies, canals
- RCC gutters, drains and planter boxes
- Wet areas like toilets, kitchen, utility, sunk slabs
- Lift pits, sump, etc.
- Interior and exterior waterproofing and damp-proofing of concrete, cementitious rendering, brickwork and blockwork
- Protection of concrete structures against the effects of de-icing salts and freeze-thaw attack
- Pore / blowhole filling
- Sealing fine static cracks in concrete structures not subject to movement
- Sealing internal basement walls against dampness
Packaging
| Part A+B pre-batched | 7 kg set |
| Part A | 2 kg container |
| Part B | 5 kg bag |
| Part A+B pre-batched | 35 kg set |
| Part A | 10 kg container |
| Part B | 25 kg bag |
Advantages
- Easy to apply by brush, spray or flat trowel
- No additional water is required to make the slurry
- Pre-batched components with consistent quality
- Easy and fast mixing
- Highly water resistant, reduces saltpetre action and prevents carbonation
- Protects concrete from chloride penetration
- Non-corrosive to steel and iron
- Flexible enough to bridge hairline crack
- Bonds well to all damp substrates
- Good abrasion resistance
- Good adhesion to reinforced concrete, mortar or masonry
- Fast curing
Colour
| Part A+B mixed | Cement grey slurry |
| Part A | Milky white liquid |
| Part B | Grey powder |
Product Details
Chemical Base
Part A Acrylic polymer
Part B Portland cement with selected aggregates and additives
Shelf Life
12 months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +10 °C and +35 °C. Liquid component must be protected from frost.
System structure
Layer | Product |
| Base coat | SikaTop®-107 Seal Plus IN |
| Top coat | SikaTop®-107 Seal Plus IN |
IMPORTANT
For larger application areas and high demanding applications, use a glass fabric reinforcement Sika® Fabric-50 between the coats. For normal exposures, usage of Sika® Fabric-50 is optional.
Shore A hardness
~90 | (ASTM D2240) |
Tensile strength
| ~2.0 N/mm2 | (ASTM D412) |
Tensile adhesion strength
~1 N/mm2 | (ASTM D7234) |
Water penetration under pressure
| ~0 mm penetration at 5 bar for 72 h | (BS EN 12390-8) |
Application
Mixing ratio
Part A : Part B = 1 : 2.5 (by weight)
Fresh mortar density
~1.90 kg/L (Part A+B mixed, +27 °C) | (EN ISO 2811-1) |
Layer thickness
~1.0–1.3 mm in 2 coats
Ambient air temperature
+10 °C min. / +40 °C max.
Substrate temperature
+10 °C min. / +40 °C max.
Pot life
~45 minutes (100 g mass, +27 °C)
Waiting time / Overcoating
Base layer | Overcoating layer | Waiting time |
SikaTop®-107 Seal Plus IN | SikaTop®-107 Seal Plus IN | ~6 h |
SikaTop®-107 Seal Plus IN | Screed / Plaster | ~3 d |
Note: Above values are at +30 °C and 50 % relative humidity. Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Applied product ready for use
Foot traffic | ~1 d |
Water immersion | ~7 d |
IMPORTANT
Applied SikaTop®-107 Seal Plus IN must not be subjected to ponding before 7 days. Contact Sika Technical Services and refer to ASTM D5957 for more information.
Consumption
0.6 to 0.75 m2 per kg
Note: The consumption will vary depending on application area, substrate type, substrate roughness, surface profile, absorption of the surface and thickness required.
EQUIPMENT
Mixing
- Electric drill paddle mixer (> 700 W, 300 to 500 rpm)
Application
- Hard bristled brush
- Squeegee
- Flat trowel
MIXING
IMPORTANT
Do not add water in any circumstances.
IMPORTANT
For bigger pack, mix only the quantity which can be used within the pot life.
Waterproofing coating
- Pour full quantity of SikaTop®-107 Seal Plus IN Part A into a clean mixing container.
- While stirring slowly, add SikaTop®-107 Seal Plus IN Part B.
- Mix thoroughly for 3 minutes, until free from lumps and smooth consistency is achieved.
Waterproofing mortar
- Pour 90 % of SikaTop®-107 Seal Plus IN Part A into a clean mixing container.
- While stirring slowly, add SikaTop®-107 Seal Plus IN Part B.
- Mix thoroughly for 3 minutes, until free from lumps and smooth consistency is achieved.
APPLICATION
IMPORTANT
SikaTop®-107 Seal Plus IN may display signs of “blooming” after rain or in damp weather. This does not affect the performance of the coating in any way.
IMPORTANT
Do not apply in direct sun and/or strong wind.
IMPORTANT
In areas of severe water penetration, three coats might be required.
IMPORTANT
Protect freshly applied material from freezing conditions, rains etc.
Detailing
- Seal all penetrations with a suitable Sika sealant like SikaSwell® S-2 or Sikagard® 694 F(I) epoxy putty to prevent any leakage from the periphery of the down take pipes.
- Additionally, if so desired cut Sika® Fabric-50 to desired dimensions for detailing on intersections and also around pipe penetration by embedding it with the SikaTop®-107 Seal Plus IN.
- Sika® SealTape F is recommended to be used as a component of a composite sealing system in conjunction with SikaCeram® tile adhesive and ceramic tiles to achieve water tightness in wet rooms and around wet areas.
Waterproofing coating
- Thoroughly pre-wet the prepared substrate (2 hours recommended) before application. Keep the surface wet and do not allow to dry. Before application remove excess water, e.g. with a clean sponge. The surface must appear a dark matt appearance without shining and surface pores and cavities must not contain water.
- Apply the first coat of SikaTop®-107 Seal Plus IN with a hard bristled brush or broom applied in the same direction and leave to harden for 2 to 6 hours.
- (Optional) Wherever coating is to be reinforced with glass fabric, lay Sika® Fabric-50 into the freshly applied base coat and embed firmly into the wet coat with brush.
- Apply the second coat of SikaTop®-107 Seal Plus IN in crosswise direction to the first application as soon as first coat has hardened.
Waterproofing mortar
- Thoroughly pre-wet the prepared substrate (2 hours recommended) before application. Keep the surface wet and do not allow to dry. Before application remove excess water, e.g. with a clean sponge. The surface must appear a dark matt appearance without shining and surface pores and cavities must not contain water.
- Apply the first coat of SikaTop®-107 Seal Plus IN by a flat trowel applied in the same direction and leave to harden for 2 to 6 hours. For pore / blowhole filling, tightly trowel into the pores / blowholes of the surface.
- (Optional) Wherever coating is to be reinforced with glass fabric, lay Sika® Fabric-50 into the freshly applied base coat and embed firmly into the wet coat with trowel.
- Apply the second coat of SikaTop®-107 Seal Plus IN in crosswise direction to the first application as soon as first coat has hardened.
Note: If the second coat is applied 12 hours or later to first coat, the first coat shall be slightly pre-wetted by using a fine spray.
IMPORTANT
Slight fabric marks may be visible after application of the second coat, but it will have no adverse bearing on the performance of the waterproofing system.
Protection
- The top coat while wet, sprinkle clean quartz sand.
- Once top coat has sufficiently cured, apply protection plaster, mortar, screed or any other adhesive layer. A bonding agent may be necessary.
- Alternatively, a separation layer like PE sheet or geotextile can be used before any plaster / screed / interlocking paver blocks.
CURING TREATMENT
Cure SikaTop®-107 Seal Plus IN for minimum 7 days to ensure full cement hydration and minimise cracks. Use wet hessian cloth, spray curing or similar approved methods during the recommended period of curing.
CLEANING OF TOOLS
Clean all tools and application equipment with water immediately after use. Hardened material can only be removed mechanically.
