Sikafloor®-264 HC
2- PART EPOXY ROLLER AND SEAL COAT
Sikafloor®-264 HC is a two part, coloured epoxy resin.
- Good chemical and mechanical resistance
- Easy application
- Liquid proof
Usage
Sikafloor®-264 HC is used as:
- Roller coat for concrete and cement screeds with normal up to medium heavy wear e.g. storage and assembly halls, maintenance workshops, garages and loading ramps.
- Seal coat for broadcast systems, such as multi-storey and underground car parks, maintenance hangars and for wet process areas, e.g. beverage and food industry
Packaging

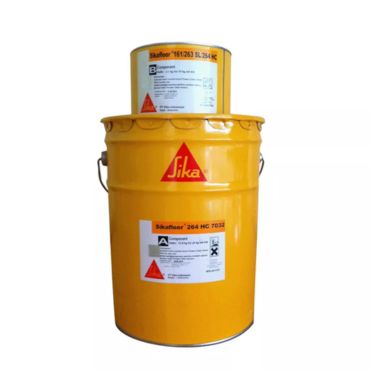

15 kg / 20 kg set ready to mix units (Part A + B)
Advantages
- Good chemical and mechanical resistance
- Easy application
- Liquid proof
- Gloss finish
- Slip resistant surface possible
Colour
Resin – part A : | coloured(grey,green,yellow,glossy…), liquid |
| Hardener – part B : | transparent, liquid |
Available in a number of colour shades. Please consult our Technical Sales Engineer for further details.
Under direct UV exposure (sun, lamp, skylight, etc.) there may be some discolouaration and colour deviation, this has no influence on the function and performance of the coating.
Product Details
APPROVALS / CERTIFICATES
- Particle emission certificate Sikafloor-264 HC CSM Statement of Qualification – ISO 14644-1, class 4– Report No. SI 0904-480 and GMP class A, Report No. SI 1008- 533.
- Outgassing emission certificate Sikafloor-264 HC: CSM Statement of Qualification – ISO 14644-8, class 6,5 – Report No. SI 0904-480.
- Good biological Resistance in accordance with ISO 846, CSM Report No. 1008-533
- Fire classification in accordance with EN 13501-1, Re- port-No. 2013-B-2119/01, MPA Dresden, Germany, June 2013.
- 2-part epoxy roller and seal coat according to EN 1504-2: 2004 and EN 13813:2002.
Composition
Epoxy
Shelf life
24 months from the date of production
Storage conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +18 °C and +30 °C.
Density
Part A | ~1.64 kg/L |
| Part B | ~1.00 kg/L |
| Mixed resin | ~1.40 kg/L |
Solid content by weight
~100 %
Solid content by volume
~100 %
Shore D Hardness
~76 (7 days / +23°C) | (DIN 53 505) |
Abrasion Resistance
41 mg (CS 10/1000/1000) (8 days / +23°C) | (DIN 53 109) |
Compressive Strength
~53 N/mm2 (Resin filled 1 : 0.9 with F36) (28 days / +23 °C) | (EN196-1) |
Tensile Strength in Flexure
~20 N/mm2 (Resin filled 1 : 0.9 with F36) (28 days / +23 °C) | (EN 196-1) |
Tensile Adhesion Strength
>1.5 N/mm2 (failure in concrete) | (ISO 4624) |
Chemical Resistance
Resistance to many chemicals. Contact Sika Technical Service Department for specific information.
Temperature Resistance
Exposure* | Dry heat |
| Permanent | +50 °C |
| Short-term max. 7 d | +80 °C |
| Short-term max. 12 h | +100 °C |
Short-term moist/wet heat* up to +80 °C where exposure is only occasional (steam cleaning etc.).
Application
Mixing Ratio
Part A : part B = 79 : 21 (by weight)
Ambient Air Temperature
+10 °C min. / +30 °C max.
Relative Air Humidity
80 % r.h. max.
Dew Point
Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.
Note: Low temperatures and high humidity conditions increase the probability of blooming.
Substrate Temperature
+10 °C min. / +30 °C max.
Substrate Moisture Content
< 4 % pbw moisture content.
Test method: Sika®-Tramex meter, CM-measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).
Pot Life
Temperature | Time |
| +10 °C | ~50 min |
| +20 °C | ~25 min |
| +30 °C | ~15 min |
Curing Time
Before applying Sikafloor®-264 HC on Sikafloor®-161 HC/-160 HC allow:
Substrate temperature | Minimum | Maximum |
+10 °C | 24 h | 3 d |
| +20 °C | 12 h | 2 d |
| +30 °C | 8 h | 1 d |
Before applying Sikafloor®-264 HC on Sikafloor®-264 HC allow:
Substrate temperature | Minimum | Maximum |
+10 °C | 30 h | 3 d |
| +20 °C | 24 h | 2 d |
| +30 °C | 16 h | 1 d |
Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Applied Product Ready for Use
Temperature | Foot traffic | Light traffic | Full cure |
| +10 °C | ~72 h | ~6 d | ~10 d |
| +20 °C | ~24 h | ~4 d | ~7 d |
| +30 °C | ~18 h | ~2 d | ~5 d |
Note: Times are approximate and will be affected by changing ambient conditions.
Consumption
Roller Coating:
Coating System | Product | Consumption |
Primer | 1-2 x Sikafloor®-161 HC/-160 HC | 1-2 x 0.35-0.55 kg/m² for each layer |
Top Coat | 2 x Sikafloor®-264 HC | 2 x 0.3 – 0.5 kg/m² for each layer |
Textured Roller Coating:
Coating System | Product | Consumption |
Primer | 1-2 x Sikafloor®-161 HC/-160 HC | 1-2 x 0.35-0.55 kg/m² for each layer |
Top Coat | 1-2 x Sikafloor®-264 HC + 1 % bw Extender T | 1-2 x 0.5 – 0.8 kg/m² for each layer |
Broadcast System ~4 mm :
Coating System | Product | Consumption |
Primer | 1 x Sikafloor®-161 HC/-160 HC | 1 x 0.35-0.5 kg/m² for each layer |
Wearing Course | 1 pbw Sikafloor®-264 HC 1 pbw quartz sand (0.1 – 0.3 mm) | ~4 kg/m2 (~2 kg/m2 binder + ~2 kg/m2 quartz sand |
Broadcasting | Quartz sand 0.4 -0.7 mm | ~4-6 kg/m2 |
| Top Coat | 1-2 x Sikafloor®-264 HC | 1-2 x 0.6 – 0.8 kg/m² for each layer |
These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level and wastage etc.
MIXING
Prior to mixing stir part A mechanically. When all of part B has been added to part A, continuously mix for 3 minutes until a uniform mix has been achieved.
To ensure thorough mixing pour materials into another container and mix again to achieve a consistent mix.
Over mixing must be avoided to minimize air entrainment.
MIXING TOOLS
Sikafloor®-264 HC must be thoroughly mixed using a low speed electric stirrer (300 – 400 rpm) or other suitable equipment. For the preparation of mortars use a forced action mixer of rotating pan, paddle or trough type. Free fall mixers should not be used.
APPLICATION
Prior to application, confirm substrate moisture content, relative air humidity and dew point. If > 4 % pbw moisture content, Sikafloor® EpoCem® may be applied as a T.M.B. (temporary moisture barrier) system.
Primer
Make sure that a continuous, pore free coat covers the substrate. If necessary, apply two priming coats. Apply Sikafloor®-161 HC/-160 HC by brush, roller or squeegee. Preferred application is by using a squeegee and then backrolling crosswise.
Levelling
Rough surfaces need to be levelled first. Therefore use e.g. Sikafloor®-161 HC levelling mortar (see PDS).
Coating
Sikafloor®-264 HC as coating, can be applied by short-piled roller (crosswise).
Seal Coat
Sealer coats can be applied by squeegee and then back-rolled (crosswise) with a short-piled roller.
CLEANING OF EQUIPMENT
Clean all tools and application equipment with Thinner C immediately after use. Hardened and/or cured material can only be removed mechanically.
CLEANING
To maintain the appearance of the floor after application, Sikafloor®-264 HC must have all spillages removed immediately and must be regularly cleaned using rotary brush, mechanical scrubbers, scrubber dryer, high pressure washer, wash and vacuum techniques etc. using suitable detergents and waxes.
